06 / Product Category

RAM / Memory

Browse three module families for different platform needs. Choose a form factor, review the available DDR configurations, and request the capacity and speed that fit your build.

DDR5DDR4DDR3
01 / 03

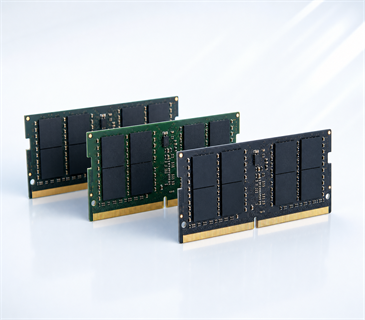

Generated studio image of compact SODIMM modules

SODIMM

A memory family for a defined platform class. Final compatibility is confirmed during technical review.

Open product dossier
Product specifications

Available SODIMM configurations

Product configurations
ParameterDDR5DDR4DDR3
Data rate4800 / 5200 / 5600 / 6000 / 6400 MT/s2133 / 2400 / 2666 / 2933 / 3200 MT/s1066 / 1333 / 1600 / 1866 MT/s
Capacity8 / 16 / 24 / 32 / 48GB2 / 4 / 8 / 16GB1 / 2 / 4 / 8GB
FunctionNon-ECC, unbufferedNon-ECC, unbufferedNon-ECC, unbuffered
Pin count262 pins260 pins204 pins
Data width64-bit64-bit64-bit
Voltage1.1V1.2V1.5V / 1.35V
PCB height1.18 in1.18 in1.18 in
Operating temp0-95°C (Tc)0-85°C0-85°C
30µ gold fingersYesYes-
Anti-sulfurization-Available-
02 / 03

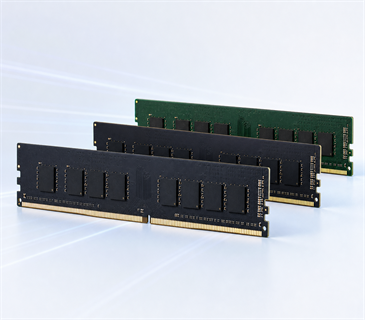

Generated studio image of full-length UDIMM modules

UDIMM

A memory family for a defined platform class. Final compatibility is confirmed during technical review.

Open product dossier
Product specifications

Available UDIMM configurations

Product configurations
ParameterDDR5DDR4DDR3
Data rate4800 / 5200 / 5600 / 6000 / 6400 MT/s2133 / 2400 / 2666 / 2933 / 3200 MT/s1066 / 1333 / 1600 / 1866 MT/s
Capacity8 / 16 / 24 / 32 / 48GB2 / 4 / 8 / 16 / 32GB2 / 4 / 8GB
FunctionNon-ECC, unbufferedNon-ECC, unbufferedNon-ECC, unbuffered
Pin count288 pins288 pins240 pins
Data width64-bit64-bit64-bit
Voltage1.1V1.2V1.5V / 1.35V
PCB height1.23 in1.23 in1.18 in
Operating temp0-95°C (Tc)0-95°C (Tc)0-85°C
30µ gold fingersYes--
Anti-sulfurizationYes (available)Yes (available)-
Optional enhancementsConformal coating / edge fill / heat spreaderConformal coating / edge fill / heat spreaderConformal coating / edge fill / heat spreader
03 / 03

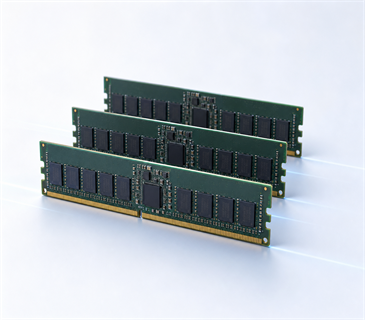

Generated studio image of enterprise RDIMM modules

RDIMM

A memory family for a defined platform class. Final compatibility is confirmed during technical review.

Open product dossier
Product specifications

Available RDIMM configurations

Product configurations
ParameterDDR5DDR4DDR3
Data rate4800 / 5200 / 5600 / 6000 / 6400 MT/s2133 / 2400 / 2666 / 2933 / 3200 MT/s1066 / 1333 / 1600 / 1866 MT/s
Capacity8 / 16 / 24 / 32 / 48 / 64 / 96 / 128 / 256 / 512GB4 / 8 / 16 / 32 / 64 / 128 / 256 / 512GB2 / 4 / 8GB
FunctionECC bufferedECC bufferedECC buffered
Pin count288 pins288 pins240 pins
Data width80-bit72-bit72-bit
Voltage1.1V1.2V1.5V / 1.35V
PCB height1.23 in1.23 in1.18 in
Operating temp0-95°C (Tc)0-95°C (Tc)0-85°C
30µ gold fingersYesYesYes
Anti-sulfurization-Yes (available)-
Optional enhancementsConformal coating / edge fill / heat spreaderConformal coating / edge fill / heat spreaderConformal coating / edge fill / heat spreader

Need a configured quote?

The catalogue covers the available family-level configurations. Tell us your target platform, capacity, speed, and quantity and we can help confirm the right modules and prepare a quotation.
