Stainless-Steel Liquid-Cooling Tube & Secondary-Side Piping System
A configurable stainless-steel liquid-cooling distribution system combining tube runs, prefabricated secondary-side piping, and manifold assemblies for data-centre cooling infrastructure. The detail view records published material, dimensional, standards, and documentation ranges without treating them as a project-specific bill of materials.
3 reference images
Product description
A configurable stainless-steel liquid-cooling distribution system combining tube runs, prefabricated secondary-side piping, and manifold assemblies for data-centre cooling infrastructure. The detail view records published material, dimensional, standards, and documentation ranges without treating them as a project-specific bill of materials.

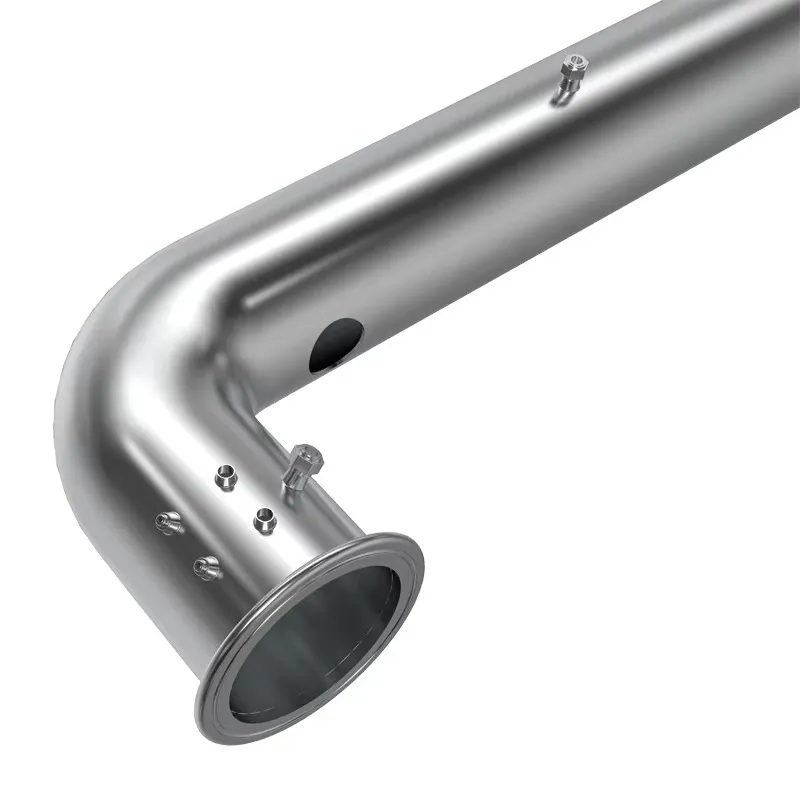

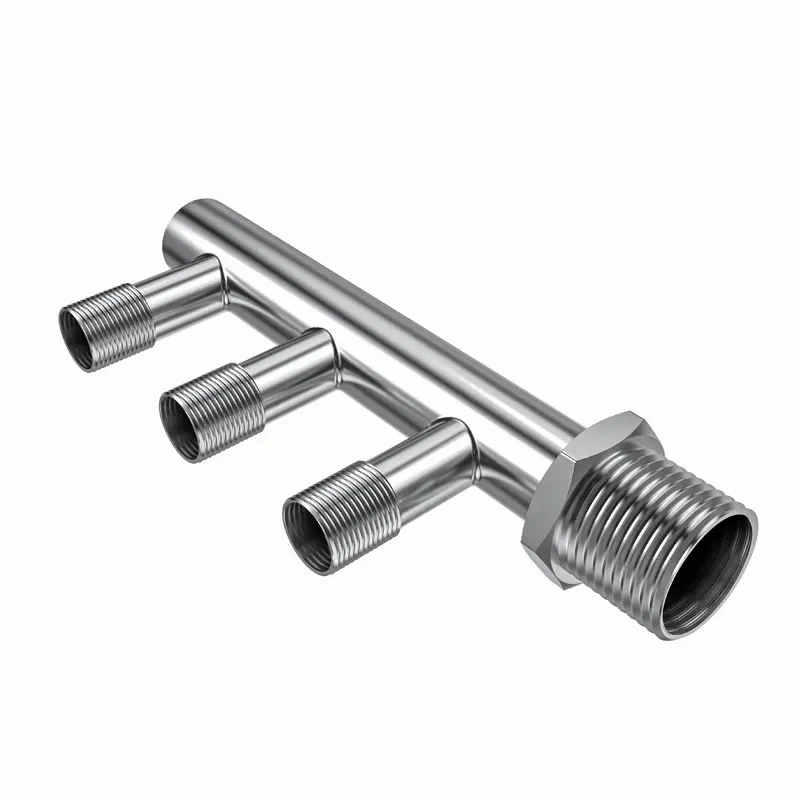

Product images
Documented specifications
Product family
Stainless-steel liquid-cooling tube, piping, and manifold system
System role
Secondary-side coolant distribution between CDUs and liquid-cooled cabinets or cold-plate assemblies
Material grades
TP304/304L and TP316/316L; additional grades selected for the project
Standards
ASTM A249/A269, EN 10217-7, and other listed ASTM, EN, DIN, JIS, and AS standards
Outer diameter
1/4-12in (6.35-304.8mm)
Wall thickness
0.035-0.12in (0.89-3.05mm)
Tube type
Seamless or welded
Configuration
Project-specific routing, branch count, connectors, materials, and pressure class
Length tolerance
+1/8in (3.18mm), -0
Documentation
EN 10204 3.1 material test certificate available
Quality /compliance
ISO 9001:2015, PED 2014/68/EU, and AD 2000-W0 listed
Final selection
Confirm coolant, flow, interfaces, cleanliness, and leak-test requirements during design review
